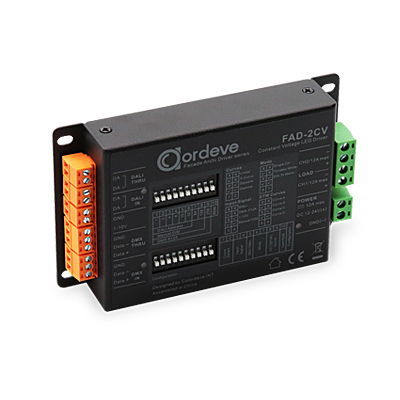

FAD-2CV
FEATURES
- Multi type signal input allow ease of architectural dimmig system setup
- 2 independent channel output or set as dual channel for all common LED tape, strips,
linear and piece of wash in total 12Amp within 12 - 24V DC supply
- Each load is designed for 12Amp output in total 12A max on 2 loads
- DipSW configuration can be done without power ON
- Selectable 8bit or 16bit control mode for all input signal types
- RDM working status feedback for system monitoring
- Output Last hold when signal lost on DALI and DMX
- Perfect dimming range from 0-100% by internal PDM in 19bit fading resolution
- Built in 3 working modes to allow the driver in specific output characteristic
- 2 & 3 pin detachable terminal connections
- Short circuit protection
SPECIFICATION
INPUT POWER
Operation voltage range: 12 to 24V DC
Output current: 12A max
CONTROL SIGNALS
Dimming signal input: DMX-512A (RDM), DALI, 1-10V, Manual dim
Dimming curves: Linear, Square, S-Curve, Gamma (standard DALI curve)
Fading resolution: Interanl PDM 19bit (524,288 steps)
Working mode select: Single Channel, Tunable White, Dim to Warm
CCT(DTW) curves: Curve A( Warm up type )
Curve B( Less Warm up )
Curve C( Black body type )
Curve D( Halogen type )
MECHANICAL
Mounting: Wall & ceiling mounted
Construction: Steel case to IP20
Dimensions: 120mm (L) x 72mm (W) x23.5mm (H)
Weight: 0.25kg
ENVIRONMENTAL
Operating ambient temperature: -10°C to +40°C
Storage ambient temperature: -20°C to +50°C
Case temperature: +55°C
PROTECTION
Protection: Over voltage, Over temperature, Overload, Short circuit, Over power
Out of TAD series, Colordeve develop the FAD series which can suitable for façade applications.
FAD-2CV is a 2 channel constant voltage driver which has most of the Colordeve TAD series technology - multi type signal input, dimming curves selection and super fine dimming resolution.
3 independent working modes for different LED fixtures, 4 CCT/DTW curves can set the color temperature curve of DT
