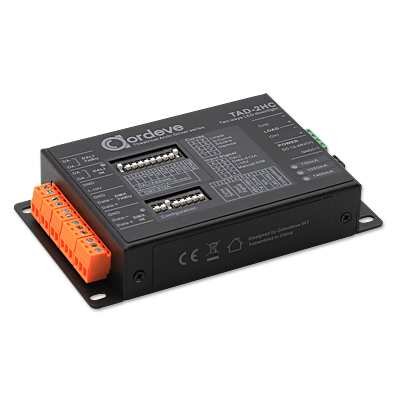

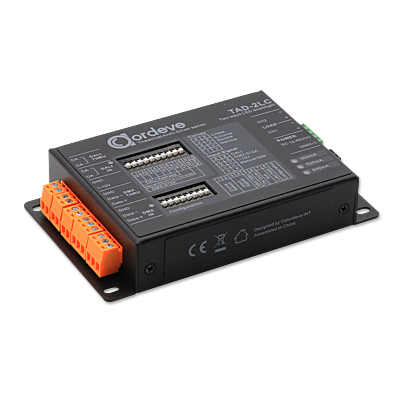

TAD-2HC/LC
FEATURES
- Multi type signal input allow ease of architectural dimming system setup
- HC version: each load output is designed for 20-50W downlight
- LC version: each load output is designed for 10-30W downlight
- 2 independent channel output or set as dual channel for Colordeve approved tunable white downlight
- 4 types of input signals can be selected - DMX-512A, DALI, 1-10V DC and manual dim
- 4 dimming curves - Linear, Square, S-curve and Gamma
- Selectable 8bit or 16bit control mode for all input signal types
- RDM working status feedback for system monitoring
- Perfect dimming range from 0-100% by internal PDM in 19bit resolution
- Output Last hold when signal lost on DMX and DALI
- DipSW configuration can be done without power ON
- Wide range of input voltage from 12 - 48V DC
- 2 & 3pin detachable terminal connections
- Short circuit protection
SPECIFICATION
INPUT POWER
Input volatge range: 12 - 48V DC
Connection: 2pin detachable terminal connector
OUTPUT
HC version output current selections - 700mA, 1050mA and 1400mA
LC version output current Sselections - 350mA, 500mA and 900mA
CONTROL SIGNALSl
Dimming signal input: DMX-512A(RDM), DALI, 1-10V DC
Connection: 2 & 3pin detachable terminal connector
Dimming range: 0 - 100%
Fading resolution: Internal PDM 19bit (524,288 steps)
Dimming curves: Linear, Square, S-Curve, Gamma
MECHANICAL
Mounting: Wall & ceiling mounted
Construction: Steel case to IP20
Dimensions: 120mm ( L) x 72mm (W) x 23.5mm (H)
Weight: 0.25kg
ENVIRONMENTAL
Operating ambient temperature: -10°C to +40°C
Storage ambinet temperature: -20°C to +50°C
Case temperature: +55°C
PROTECTION
Over voltage, Over Temperature, Overload, Short Circuit, Over Power
A multi input signal COB LED downlight driver with very stable output dimming fade from 0 - 100%.
Dimming curves could be selected as old day thyristor dimmer to obtain the natural tungsten visual mood.
We use the high resolution technology to get the fading performance much much better than normal 8 bit(256 steps).
2 models HC & LC can cover most of the constant driving current range.
Dimming curves could be selected as old day thyristor dimmer to obtain the natural tungsten visual mood.
We use the high resolution technology to get the fading performance much much better than normal 8 bit(256 steps).
2 models HC & LC can cover most of the constant driving current range.
