FEATURES

Flexible Beam Shaping

A fixed 12° but redefinable beam angle offers optional diffusers, now with a new system of split filters allowing three different beam angles per BAR and generating asymmetrical light output for use as a high-quality cyc light. Optional barn door can trim the beam if required.

Four Array Options
- RGB-Lime array
- RGBW array
- Tunable white array (2800K -6000K), CRI of 95
- Fixed White (3000K/4000K/5700K), CRI >90

Ultra Smooth Dimming Method
DLS(Dim Low Stabilization) imperceptible 19 bit resolution (524,288steps) dimming for ultra smooth fade to dark.

All-weather, Sturdy Design

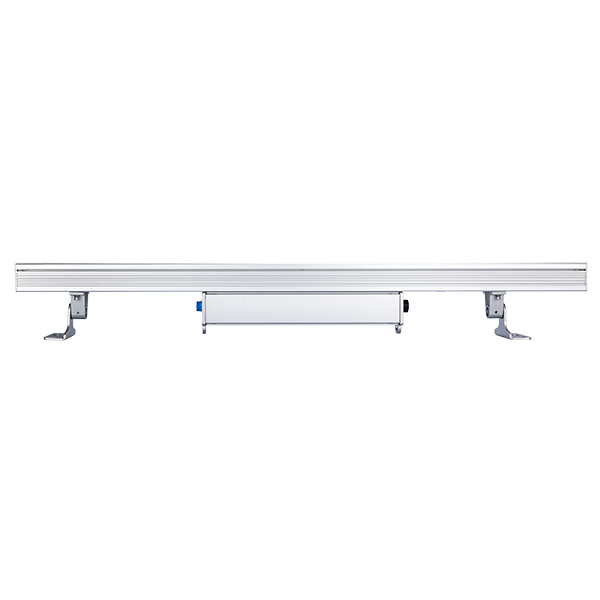

WarhorseBAR design in rugged aluminum alloy extrusion house, IP66 rated can let you to put on your jobs for
everywhere outdoor, any wet places or dusty areas.

SPECIFICATION

OPTICS

85% optic efficiency
Beam aperture: 12 degree (measured at ½peak)
High-efficiency 45mm PMMA optics

LIGHT SOURCE

12 Multi-chip high intensity LED source,
Lumens output: 8500lm (Fixed White)
Illuminance: 4000 lx @5m(12°)
LED lifetime: 50,000 hours (L70 @25 degree C)

COLOR SYSTEM

Color mixing system: RGBL, RGB, HSIC and CMY

Color temperature range: 2800K to 60,00K

DYNAMI EFFECTS

Digital color gels: 132 colors

Color rainbow effect with variable speed

Built-in pixel effects with color chases, waves at variable speed and direction
Strobe effects - 0.4Hz to 30Hz with a number of built in strobes, pulses, and effects
DLS(Dim Low Stabilization) imperceptioble 19 bit resolution dimming for ultra smooth fade to dark

CONTROL & CONNECTIONS

User Interface: Photosensors switch to call up luminaire status and diagnostics, configuration via RDM.
Protocol: DMX-512A(RDM)
DMX Maps: STD-8/16bit, RGB Mode(default), CMY Mode /HSIC Mode /Studio Mode /Studio Color Mode
Four dimming curves: Linear, S-Curve, Square curves and Incandescent
Hybrid power and data connnector for easy daisy-chained

ELECTRICAL

Input voltage range: 100-240V AC, 50/60Hz
Power consumption: 200W
Power/data input / thru through 8-pin custom connectors with IP68 rating

THERMAL

Cooling system: Convection
Operating ambient temperature range: -20 to 40 degree C
Max temperature of the external surface: 80 degree C
Safety protection against temperatures excesses

Total heat dissipation(calculated, +/-10%): 682.42 BTUs/hour

PHYSICAL

Materials: Extruded anodized aluminium profile
Available colors: Matt black anodized or silber
Mounting: 2 integrated multi-positioning brackets(1/4 trun omega)
IP rating: IP66
Weight: 5.2 kg
Dimensions: 1020mm (L) x 132mm (W) x 137.5mm (H)

APPROVALS

CE Compliant

OPTIONAL ACCESSORIES

Secondary lens available

- 25°

- 45°

- 15 x 40°

- 30 x 60°

Power Cable

- Lead-in Cable, 2m EU

- Lead-in Cable, 10m EU

- Extension Cable, 0.3m EU

- Extension Cable, 1m EU

- Extension Cable, 5m EU

- Extension Cable, 10m EU

- End Termination Cap

- Junction BOX

Beam Sharping

- Glare Shield

- Louver
