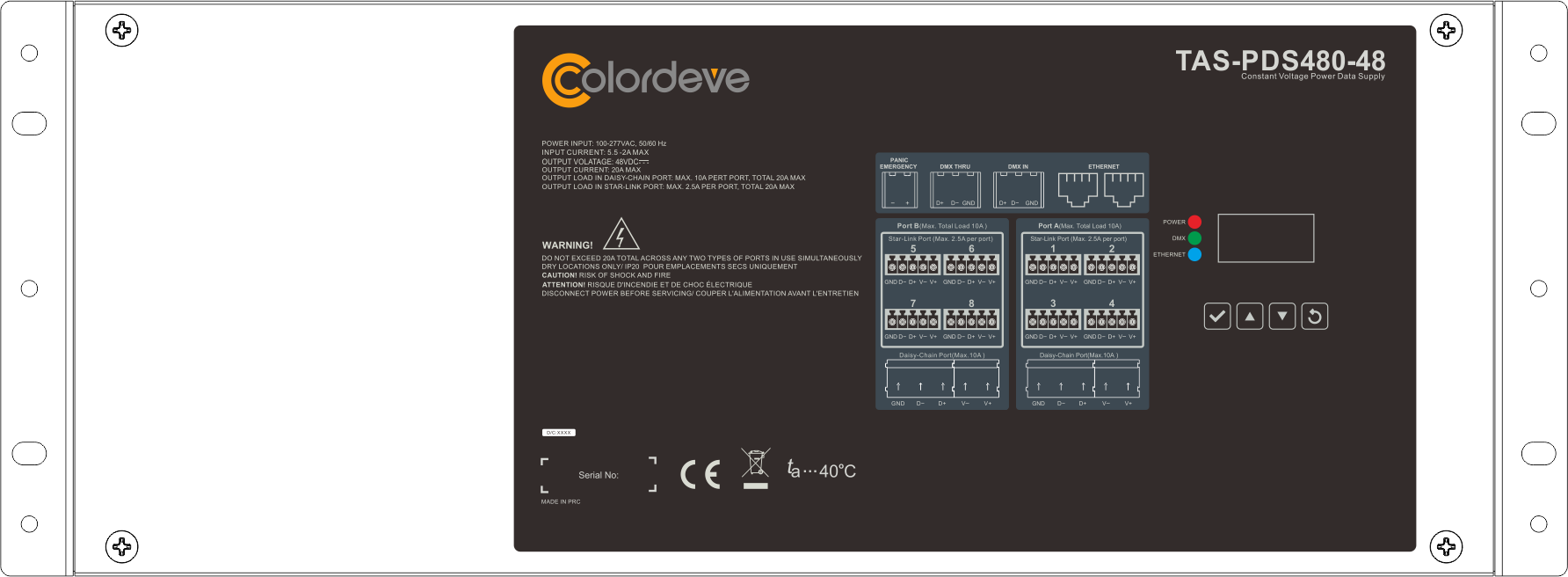

TAS-PDS480
FEATURES
Physical
Standard 19-inch, 4U rack-mountable form factor. Compact,
neat, and structured for easy installation with fanless cooling.
Connectivity
Starlink Connection: It features 8 individual 48V DC outputs,
each rated at 2.5A. It is capable of powering up to 12 fixture
with cable lengths of up to 10 m.
Daisy Chain Connection: It features two independent output
ports, each rated at 48V DC / 10A.
Each port can support a daisy chain of up to 4 fixtures.
Easy to configure: Settings and addresses can be adjusted
using the onboard menu or configured remotely via RDM.
The TAS-PDS power data supply provides power and data for the TAS-HL114 Halogen LED fixture series. It supports input control protocols including DMX/RDM, sACN, and Art-Net, and features a 24V DC (48VDC optional) output. It utilizes a globally approved, premium PSU with a universal input range of 100-277VAC, making it suitable for nearly any application or location.
