FEATURES

Mulit-Purpose

Wonderful Colors and light output quality make use for all applications of entertainment, theatrical and architectrual lighting capabilites. TAS-HL114 series has the ability to seamlessly transform the “look” and “mood” to the performance venue, such as the themed retail space or house of worship.

Control Flexibility

TAS-HL114 series can be control by standard DMX-512A (RDM) signal under all kind of controllers, or use the HueMaster control system tools in a much easy way for a whole set of Configuration, Programming and Playback in schedule.

Thanks to the suspension housing body structure design (patent), it’s not only provides a powerful driving ability with integrate, but solved the light output droop by excessive temperature caused by heat compilation.

Ultra Smooth Dimming Method

DLS(Dim Low Stabilization) imperceptible 19 bit resolution (524,288steps) dimming for ultra smooth fade to dark.

Superior Light Quality

Precision optics from industrial standard in either spot or flood versions, providing a consistent beam with very smooth roll-off and no hot spots occur. The high efficient optics means less wasted of light and spill, our special designed micro-lens panels can be wide the beam in sudden.

Quick Install Design

Simple mounting clamps design for easy & quick insert to the ceiling ring while all trims attach magnetically.

• Available in four mounting options - Surface, Pendant, Wall, and Recessed Ceiling.
• 2700 max lumen
• IP20 rated, suitable for damp locations
• Lightweight - 0.85kg
• Rotation (Pan) for Recessed Ceiling Installation: 360°

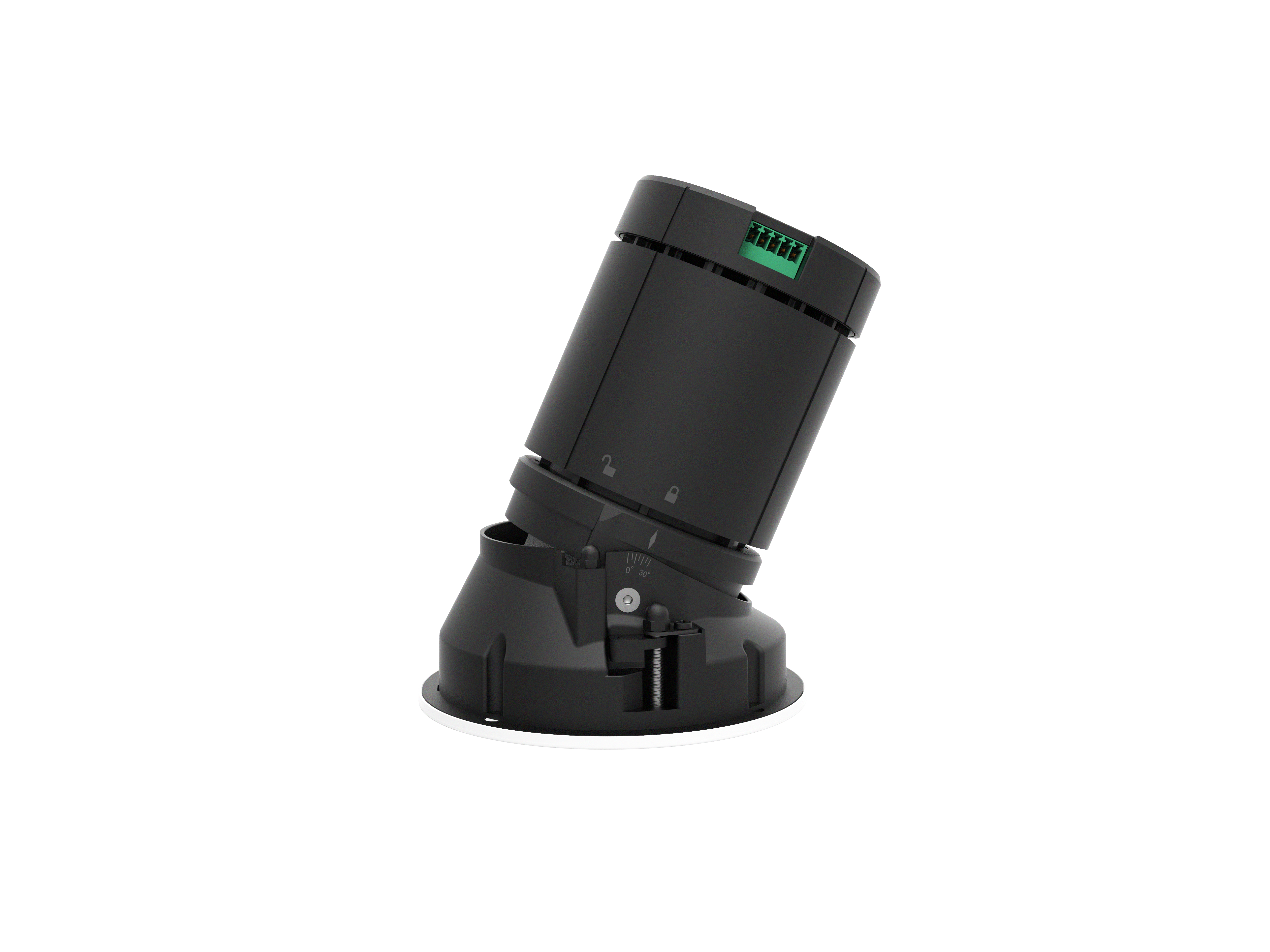

• Tilt Angle for Recessed Ceiling Installation: 30°
• Beam angle range - 25°, 40°, 60°
• Optical Lens - Frost, Linear and Hex Louver
• Pluggable Terminal Block for power and data connection
• Compatible with DMX 512A(RDM) E1.20/ E.1.37.1 and.2 compliant
• LED Array

         -Tunable White (2700K to 6500K, CRI up to 98)

         -Dim to Warm (3000K to 1800K, CRI up to 98)

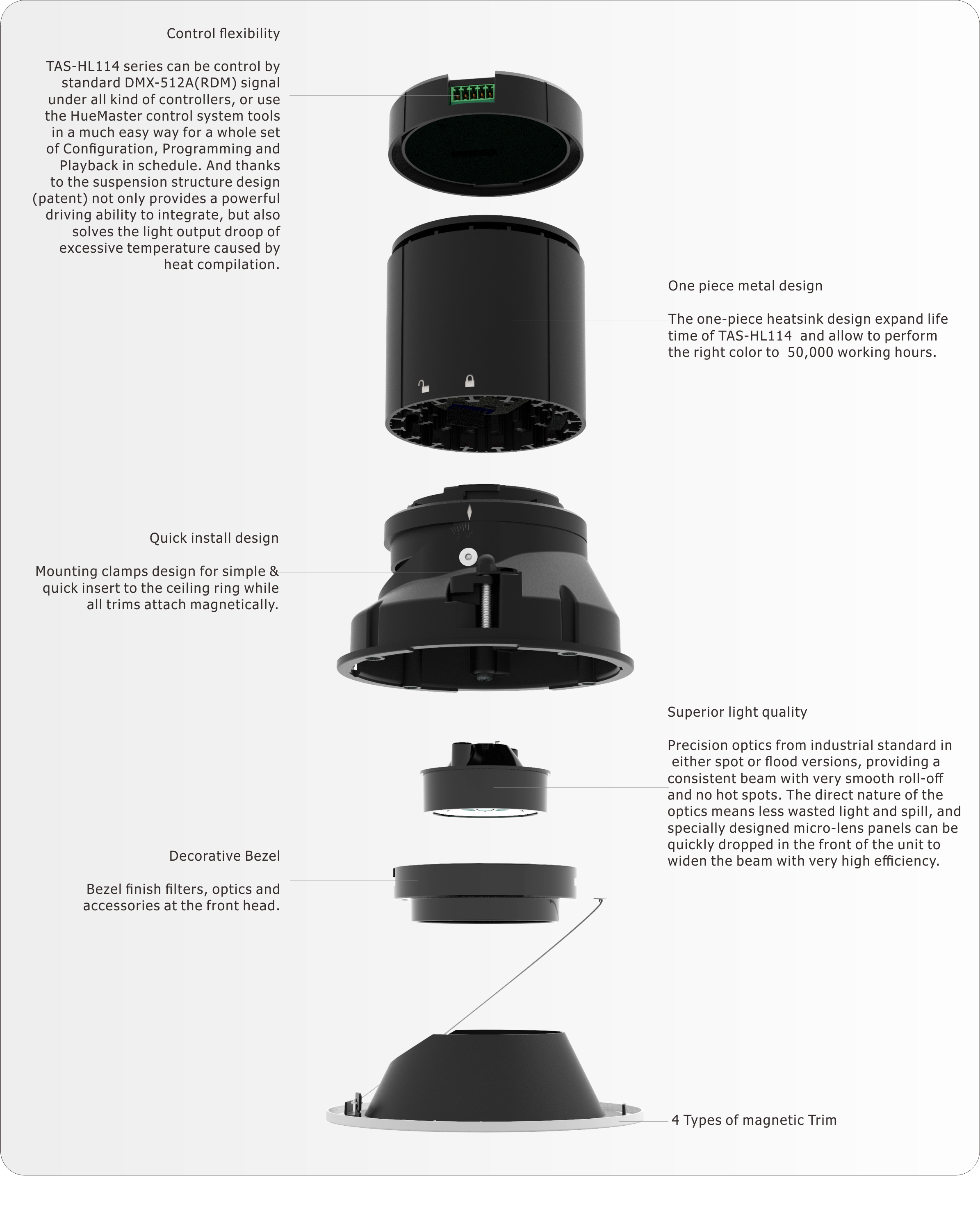

MODULAR CONCEPT

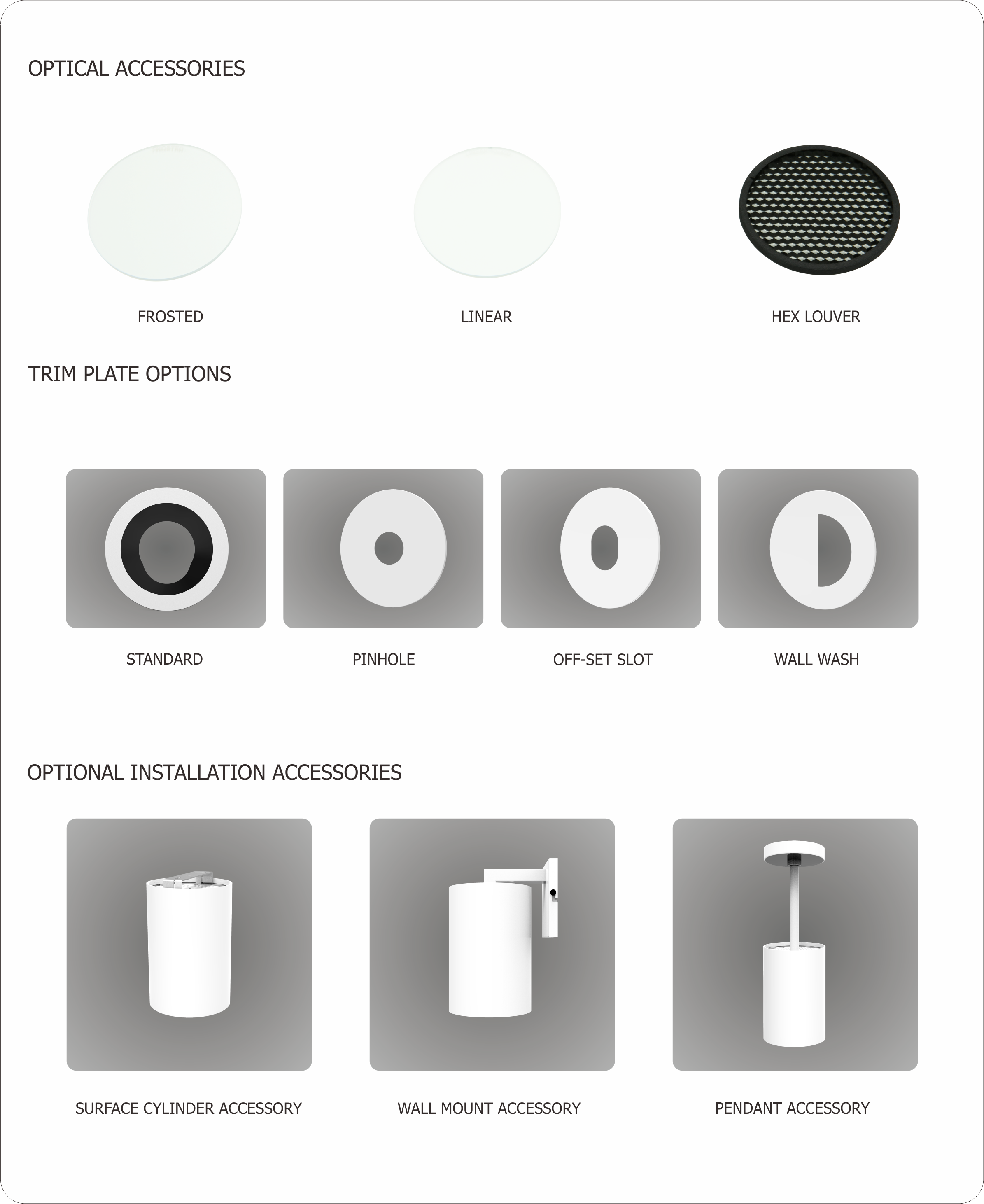

ACCESSORIES
