FEATURES

IP65 All-Weather Rating
Ensures reliable performance in all weather conditions, making it suitable for both indoor and outdoor use.

Flexible Beam Shaping

A wide range of diffusion and beam shaping accessory options unlock the potential of the RocketPAR IP. High backlight, low sidelight,  you name it, RocketPAR IP will hit it just right.

Color Consistency
RocketPAR IP are calibrated at the factory to ensure color consistency. They use a six-color mixing system to deliver bright, vibrant colors and perfectly blended pastels.

Each RocketPAR IP fixture has a built-in thermal management algorithm to ensure that the colors you select when programming are the colors you will use in your show.

Ultra Smooth Dimming Method
DLS(Dim Low Stabilization) imperceptible 19 bit resolution (524,288steps) dimming for ultra smooth fade to dark.

Stay Cool, Stay Quiet
With its fanless convection cooling system, the RocketPAR IP RGBACL delivers high-output performance while staying whisper-quiet. Perfect for noise-sensitive environments.

SPECIFICATION

OPTICS

85% optic efficiency
Beam aperture: 15 degree (measured at ½peak)
High-efficiency 40mm PMMA optics

LIGHT SOURCE

12 Multi-chip RGBACL LED source,
Lumens output: 4500lm
Illuminance: 4800 lx @5m
LED lifetime: 50,000 hours (L70 @25 degree C)

COLOR SYSTEM
Color mixing system: RGBACL, RGB, HSIC and CMY

Color temperature range: 1800K to 10,000K

Filament response: 750W/1kW/1.2kW/2kW/2.5kW (red shift and thermal delay during dimming)

+/- Green adjustment and emulated red-shift for precise color balance adjustments.

DYNAMI EFFECTS

Digital color gels: 154 colors

Color rainbow effect with variable speed

Built-in pixel effects with color chases, waves at variable speed and direction
Strobe effects - 0.4Hz to 30Hz with a number of built in strobes, pulses, and effects
DLS(Dim Low Stabilization) imperceptioble 19 bit resolution dimming for ultra smooth fade to dark

CONTROL & CONNECTIONS

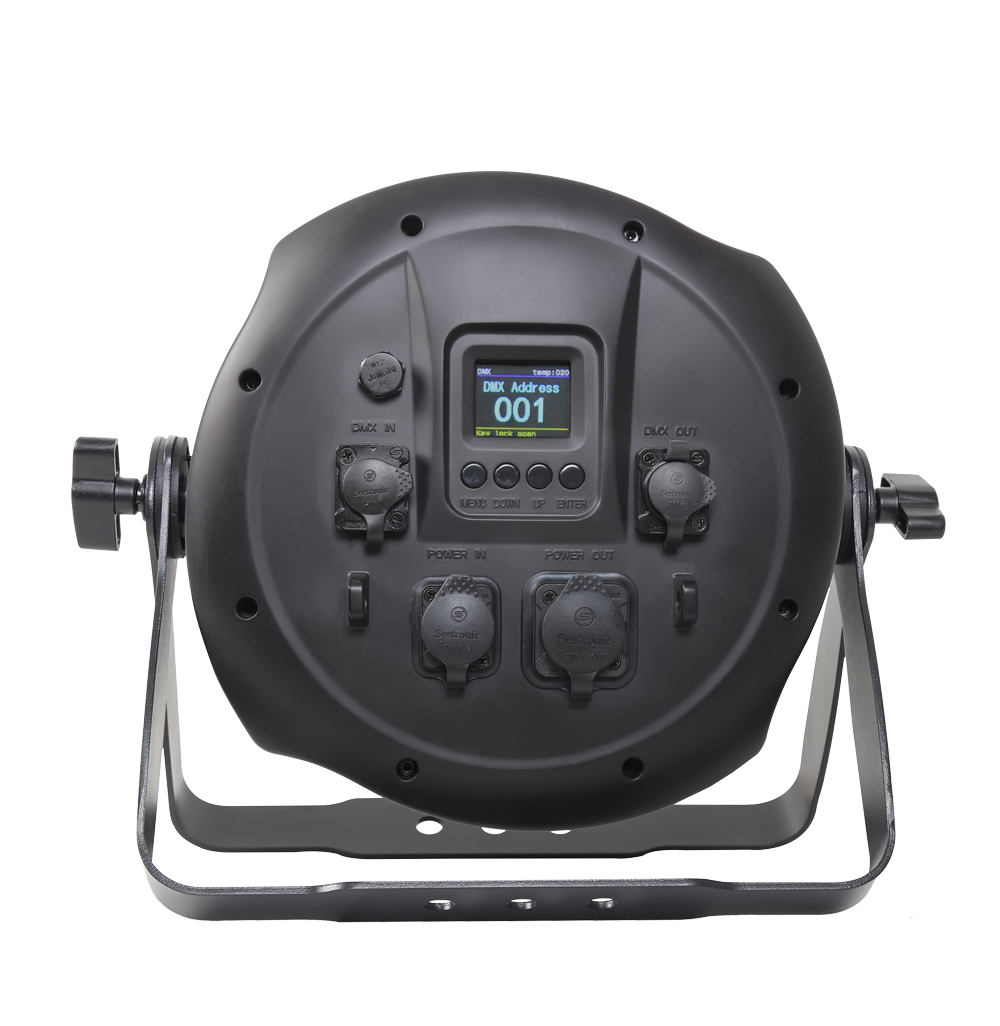

Local control panel, with OLED display and 4 buttons
Protocol: DMX-512A(RDM)
DMX Maps: STD-8/16bit, RGB Mode(default), CMY Mode /HSIC Mode /Studio Mode /Studio Color Mode
Four dimming curves: Linear, S-Curve, Square curves and Incandescent

DMX and RDM data In / Thru through IP65 rating XLR 5 pin connectors

ELECTRICAL
Input voltage range: 100-240V AC, 50/60Hz
Power consumption: 200W

Power Input / Thru through IP65 rating PowerCON connectors

THERMAL

Cooling system: Convection
Operating ambient temperature range: 0 to 40 degree C
Max temperature of the external surface: 80 degree C
Safety protection against temperatures excesses

Total heat dissipation(calculated, +/-10%): 682.42 BTUs/hour

PHYSICAL

Materials: Die-cast aluminum
Available colors: Matt black
Mounting: Double yoke (floor stand)
IP rating: IP65
Weight: 4.35 kg
Dimensions: 280.3mm (L) x 137.1mm (W) x 288.3mm (H)

APPROVALS

CE Compliant

OPTIONAL ACCESSORIES

Secondary lens available

- 25°

- 45°

- 60°

- Oval lens

Beam Sharping

- 4 Leaf Barndoor
