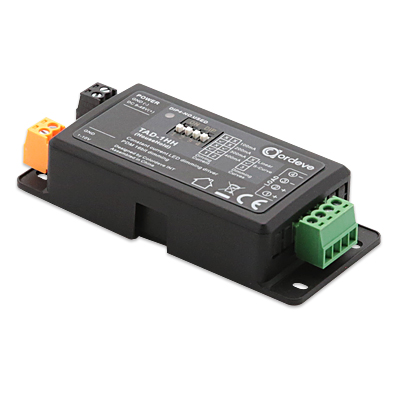

TAD-1HH(House Hold)
FEATURES
- Compact size design
- Inexpensive 1-10V DC control dimming solution
- Fine internal PDM 16bit dimming resolution
- DipSW configuration can be done without power ON
- Non flicker dimming range from 0 -100%
- 2 & 4 pin detachable terminal connections
- Short circuit protection
SPECIFICATION
INPUT POWER
Input volatge range: 9 - 48V DC
Connection: 2pin detachable terminal connector
OUTPUT
Output current selections - 100mA, 200mA, 300mA and 400mA
Connection: 4 pin detachable terminal connector
CONTROL SIGNAL
Dimming signal input: 1-10V DC
Connection: 2 pin detachable terminal connector
Dimming range: 0 - 100%
Fading resolution: Internal PDM 16bit
Dimming curves: Linear, S-Curve,
MECHANICAL
Mounting: Wall & ceiling mounted
Construction: Polycarbonite case to IP20
Dimensions: 90mm ( L) x 39.8mm (W) x 19.5mm (H)
Weight: 30 gram
ENVIRONMENTAL
Operating ambient temperature: 0°C to +40°C
Storage ambinet temperature: -10°C to +50°C
Case temperature: +55°C
PROTECTION
Over voltage, Over Temperature, Overload, Short Circuit, Over Power
Simple easy COB LED driver for wall mout rortary 1-10VDC signal control.
Wide range of 9 - 48VDC operation with combinations of selective 100mA, 200mA, 300mA and 400mA constant current output.
Output dimming curve can select from Linear or S-curve
Wide range of 9 - 48VDC operation with combinations of selective 100mA, 200mA, 300mA and 400mA constant current output.
Output dimming curve can select from Linear or S-curve
